Casing Patches

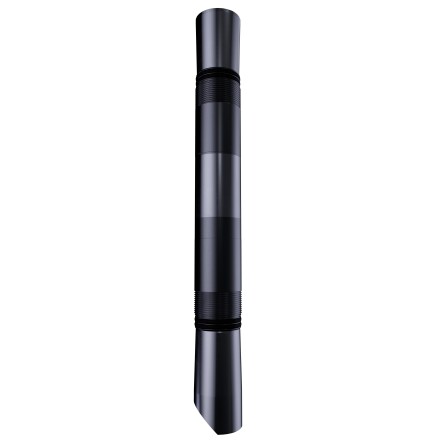

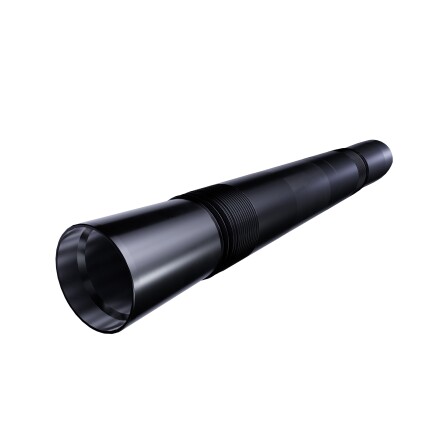

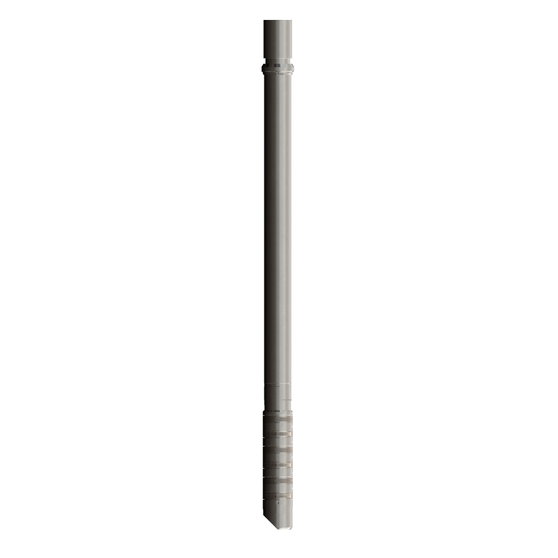

CASING PATCH

The Casing Patch incorporates metal-to-metal sealing technology to provide a permanent seal over perforations, frac sleeves, cement stage tools, leaks or corroded tubulars, or to repair split connections or casing. The large bore of the Casing Patch ensures easy passage of service tools after installation.

The Casing Patch is installed using a multi-stage or hydraulic setting tool. Specialized handling equipment is not required for running the patch and it can be deployed on electric line, slick line, tubing, drill pipe, coiled tubing, e-coil or tractor systems.

Partners:

                Core Lab Reservoir Optimization / Owen Oil Tools

o   https://owendata.corelab.com/owen/cms/docs/Brochures/X-SPANPrt.pdf

Features

                Modular system and patch length can be modified on site

                A large bore for ease of passage to lower production zones

                High pressure ratings and unique design make it suitable for some frac through applications

Options

                High pressure/high temperature

                Gas tight system

                Premium sealing elements

                Multi-stage or hydraulic setting tool
