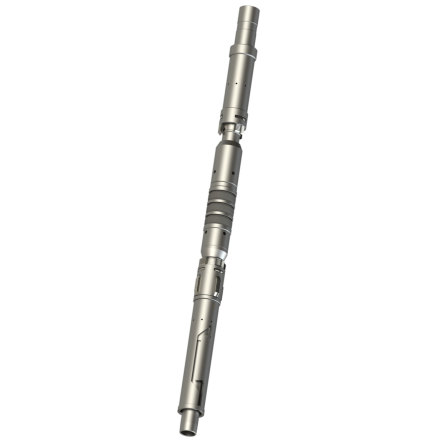

The Import Tool Mechanical‐Retrievable Bridge Plug is a high-performance double‐grip retrievable plug that is designed to isolate the wellbore when performing treatments such as fracturing, acidizing, or temporary suspension of a producing formation, either deep or shallow.
A large internal by‐pass reduces swabbing when running and retrieving. The by‐pass closes when the plug is set and opens while releasing the upper slips when retrieving to allow pressure equalization across the plug.
The MSR Bridge Plug is run in with the "EQV" equalizing valve running and retrieval J‐slot system that allows for easy setting and releasing ‐ 1/4 right‐hand turn to set, 1/4 right‐ hand turn to release.
The MSR Bridge Plug's bi‐directional slips securely anchor the bridge plug against pressure differentials from above or below. The customizable triple element ensures reliable sealing at high pressures and temperatures.
• Zone Isolation
• Fracturing
• Cementing
• Wellhead Replacement
• Surface Equipment Maintenance
• Casing Pressure Testing
• Simple installation and retrieval
• Ability to hang pressure recorders
• Triple element sealing system to provide effective pressure containment
• Bi‐directional slips to prevent movement in the casing
• Multiple element options
