Flow Control

FLOW CONTROL

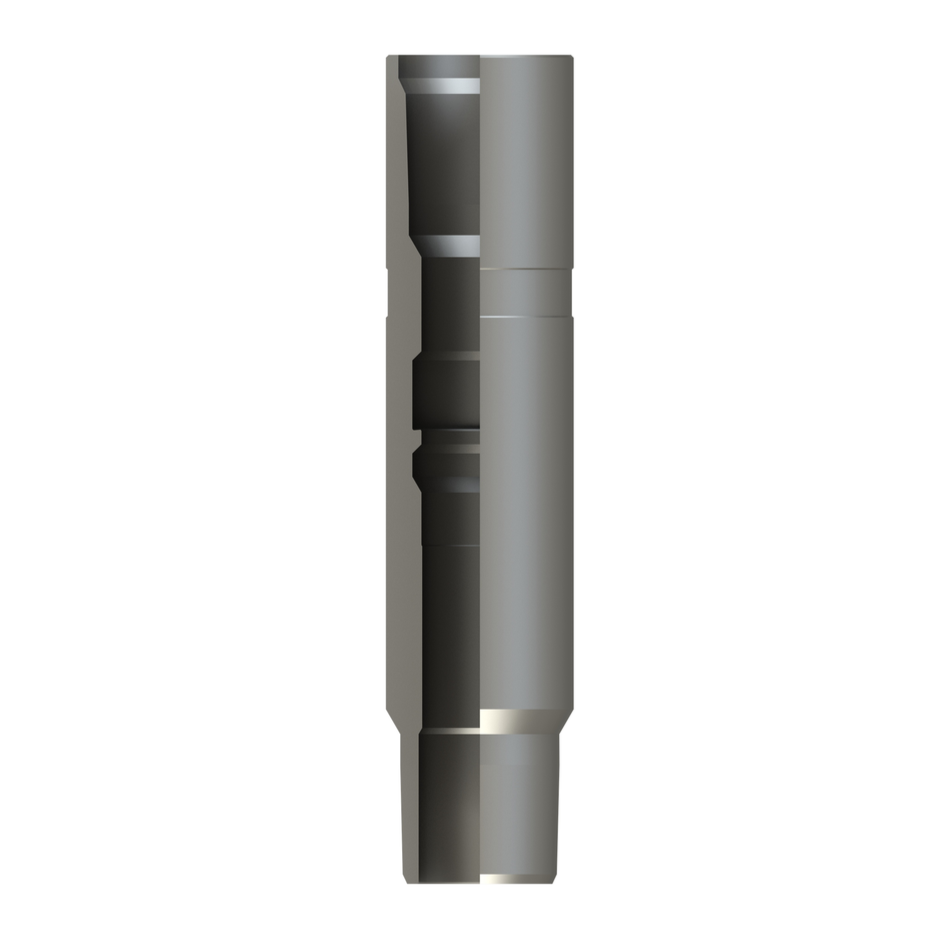

Flow Control Landing Nipples are used in the completion string to allow for the positive location of various subsurface flow control devices such as blanking plugs, bottom hole chokes and downhole recorders. The locking profiles allow for full selectivity in running flow control devices in completion strings where numerous profile nipples may be required.

Features

                 Allows for positive location of various subsurface flow control devices

                 Full selectivity in completion strings where numerous profile nipples are required

Options

                No-Go ring machined into the bottom of the tool

                Wide range of profile and nipple sizes

                 High pressure rated tools

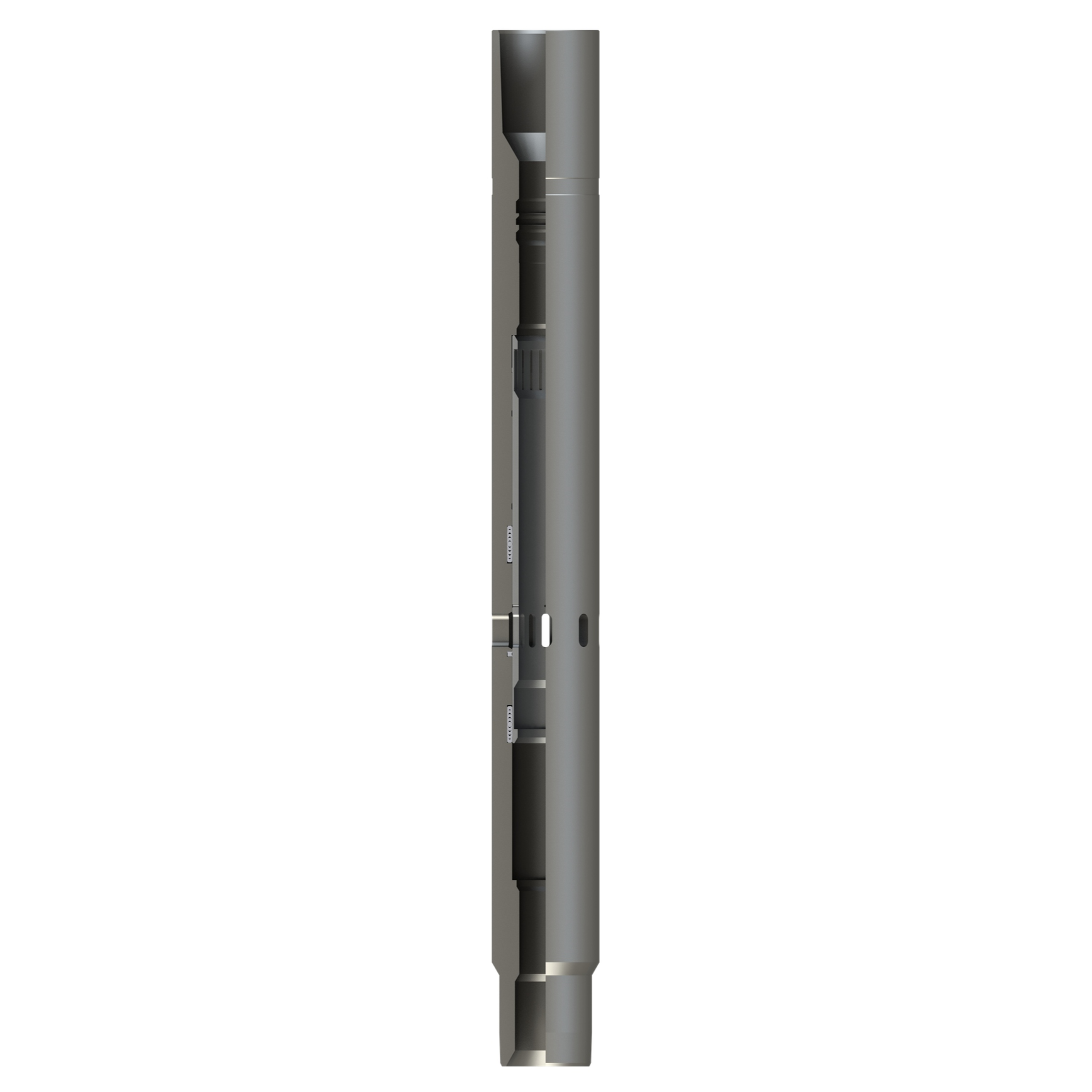

Flow Control Sliding Sleeves are full opening tools with an inner shiftable sleeve which can be opened or closed using standard wireline or coiled tubing deployed shifting tools. The Sliding Sleeves are designed with a circulation/flow area that is at least equal to the tubing size. Equalizing ports in the inner sleeve allows for equalizing when shifting the sleeve open in high pressure differential applications.

Features

                 Bonded or v-seals ensure tool integrity for extended periods of time down hole

                Sleeves activated with standard B Shifting Tool or D-2 Shifting Tool

                 Normal wireline, coiled tubing or other operations will not open or close the sleeves inadvertently

Options

                 Landing profile machined into the upper portion of the sleeve

                 Shift upwards or downwards to open
