The Liner Hanger securely anchors a liner in the wall of a previous casing string. Liner hangers are available in a range of sizes and specifications to suit a variety of conditions, including onshore and offshore wells, HPHT environments and high hanging capacity requirements.

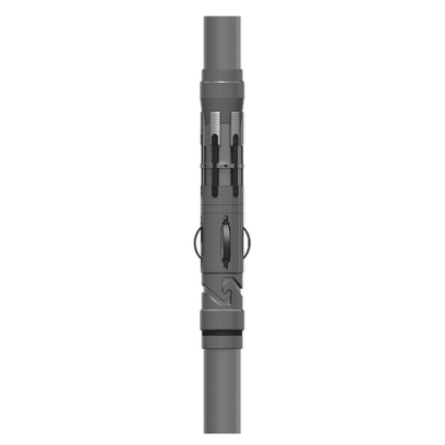

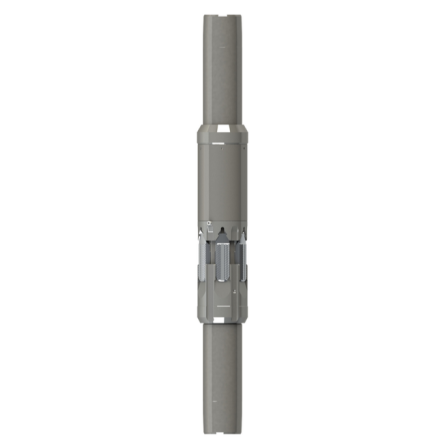

The Liner Hanger is made up of a mandrel, and one or more sets of slips and cone pads. Different models can be set mechanically or hydraulically. A Liner Hanger is typically run with a Liner Top Packer to make up a Liner Hanger System.
• HPHT models rated up to 15,000 psi (103.42 MPa) and 450°F (232°C)
• Variety of slip designs available to effectively match downhole conditions
• Slips designed to maximize bypass flow area
• Wide range of tool sizes
• Mechanical and hydraulic-set models available
• Functionality to rotate while cementing available
