The Whipstock and Single-Trip Mill System provides efficiency and accuracy when drilling sidetrack or multi-lateral wells. The whipstock is firmly anchored in place using tri-directional slips, eliminating the risk of rotation and improving exit accuracy. The fulcrum lug anchor ensures that the top of the whipstock is always held firmly against the casing wall, regardless of orientation or deviation.
The whipstock features a unique carbide coated ramp profile that works with the mill to maintain a progressive cutting force against the casing wall, delivering a clean exit window and ensuring low dogleg severity through the exit.
• Single-trip system provides effective and efficient sidetracks

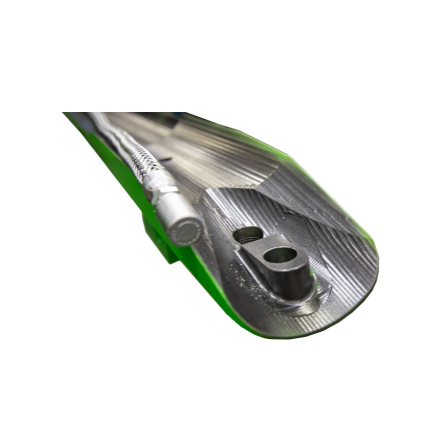

• Multi-ramp whipstock with carbide coated ramps
• Tri-directional anchor slips provide positive anchoring and eliminates hang-up risk
• Fulcrum lug anchor forces whipstock against casing in all deviations

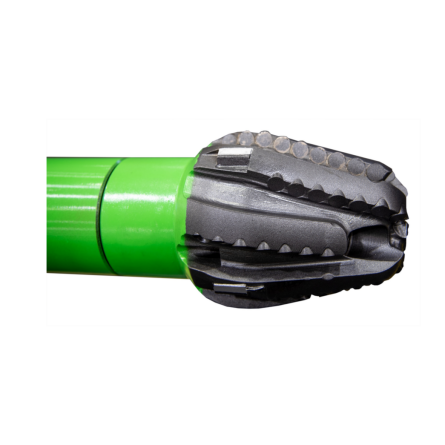

• Unique geometry mills with integrated pilot mill, follow mill and dress mill

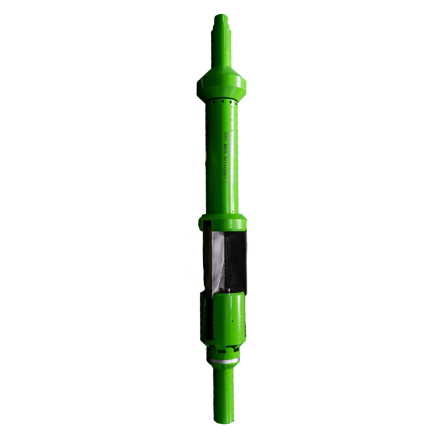

• Multiple anchor mechanisms
• Fully retrievable whipstock available
