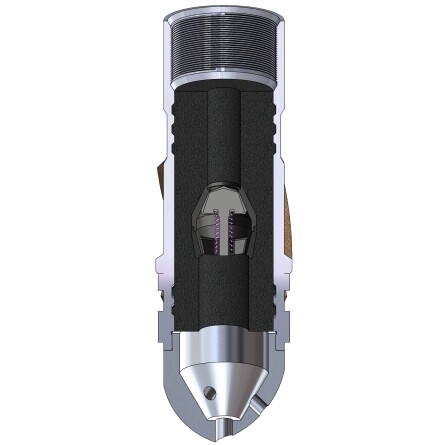

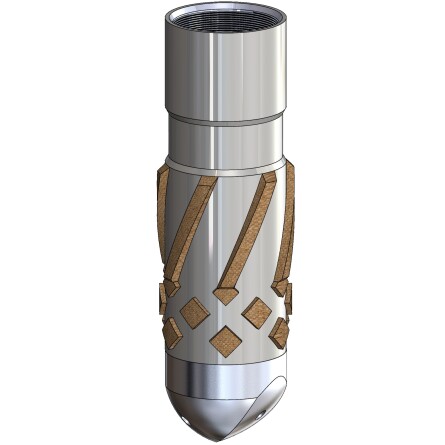

A Reamer Shoe is designed to ensure the safe passage of casing, liner, and screen applications when encountering ledges, swelling shale, mud cake build-up, sand bridges and washed-out pockets occurring in the wellbore.
Features
High strength aluminum eccentric guide nose
Flow ports provide a 360° flow area
A 360° spiral blade design, featuring TCI inserts or tungsten carbide cutting structures, can provide either aggressive or passive reaming action—depending on wellbore requirements—and improves casing standoff
Single, double, and auto-fill valve option
5,000 psi (34.47 MPa) and 10,000 psi (68.95 MPa) rated
