FLOTATION SYSTEMS

FLOTATION SYSTEMS

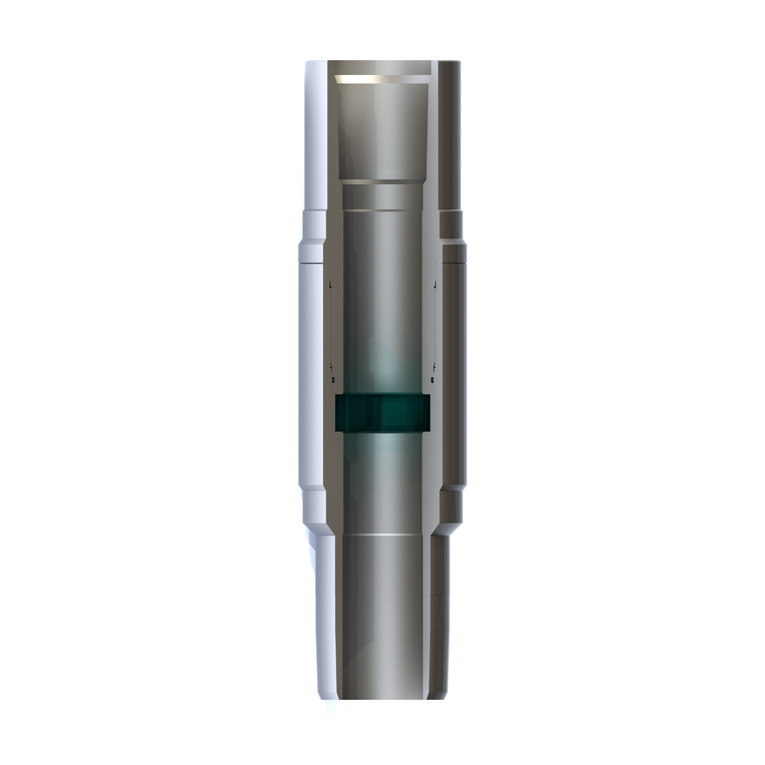

The Glass Disk Buoyancy Collar is a mud-over-air tool specifically designed to aid liner, and casing runs to bottom in horizontal applications. A temporary barrier is formed inside the casing with a glass disk to allow for separation of air-filled casing below from fluid above. When activated, the glass disk shatters into dust particles which can be safely circulated through any down hole equipment.

Features

                 Reduce friction, casing wear when running in

                Full bore ID after shear

                No debris trap needed, eliminating potential for interference with ball seats & downhole equipment

                Pressure activated

                Sleeve and Toe Port compatible

                Variable pressure settings to suit specific applications

The Drill Pipe Buoyancy Collar is a liner flotation device that utilizes a pressure activated ball valve that is installed into the workstring and designed to aid liner to bottom in shallow, long horizontal applications.

A temporary barrier is formed inside the workstring with a ball valve to allow for separation of air-filled liner below from fluid above. As the liner is run-in, the fluid filled workstring above will help push the lighter, more buoyant air-filled liner below to set depth. Once the liner has reached set depth, the applied pressure will shift the internal ball valve to its fully open position, allowing the air to migrate up out of the liner below.

When ran in conjunction with a float shoe, the operator has the ability to circulate out drilling mud to water or desired production fluid once liner has reached set depth and the ball valve has been sheared open.

Features

                Extended Laterals

                Casing Flotation

                 Features and Benefits

                Installed in workstring

                 Full bore ID after shear

                Adjustable opening shear

                 Internal spring-loaded locking system

                High torque rating

                Easily accommodate all workstring connections
