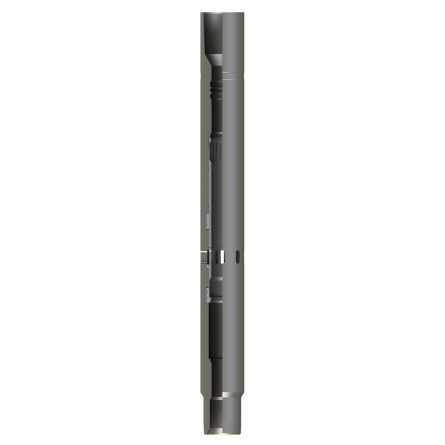

Flow Control Sliding Sleeves are full opening tools with an inner shiftable sleeve which can be opened or closed using standard wireline or coiled tubing deployed shifting tools. The Sliding Sleeves are designed with a circulation/flow area that is at least equal to the tubing size. Equalizing ports in the inner sleeve allows for equalizing when shifting the sleeve open in high pressure differential applications.
• Bonded or v-seals ensure tool integrity for extended periods of time down hole
• Sleeves activated with standard B Shifting Tool or D-2 Shifting Tool
• Normal wireline, coiled tubing or other operations will not open or close the sleeves inadvertently
• Landing profile machined into the upper portion of the sleeve
• Shift upwards or downwards to open
