VAULT SYSTEM

Import Tool's Vault System is designed to incorporate the liner top Debris Seal Packer (DSP) and retrievable bridge plug into a single trip, eliminating the costly second bridge plug run. With the ITC Vault System, the operator has the ability to pressure test the liner top packer and bridge plug separately while staying attached to the running string. This eliminates the risk of liner migration out of the intermediate casing due to pressure testing forces across the well.

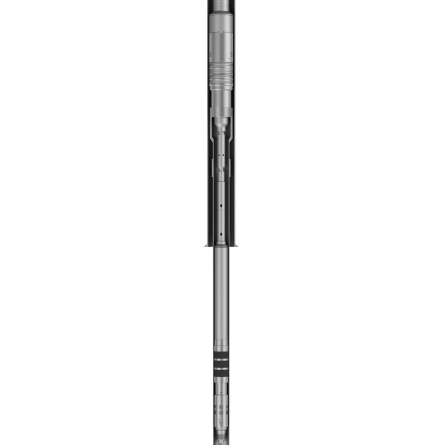

The Vault System incorporates the bridge plug into the first joint below the liner top which is attached to the DSP running tool. This allows the system to have the full ability to push, pull, rotate and circulate the liner while running in.

The ITC Thermal Debris Seal Packer includes an industry proven, robust stainless steel dual element. This prevents produced sand and other debris from impeding steam injection and heavy oil production in high temperature, abrasive environments up to 1,200 °F (650 °C). The cold production Debris Seal Packer includes an elastomer element that is rated up to 275 °F (135 °C). When set, the element acts as a solid debris barrier that protects the production fluid from being contaminated with sand and other downhole debris.
