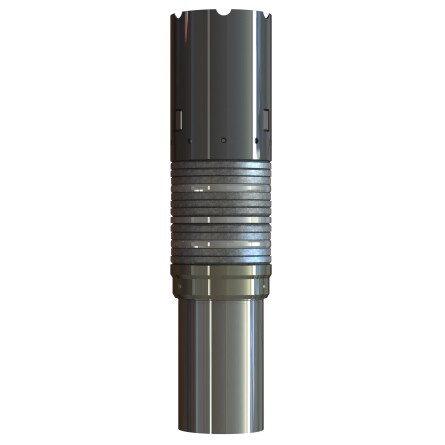

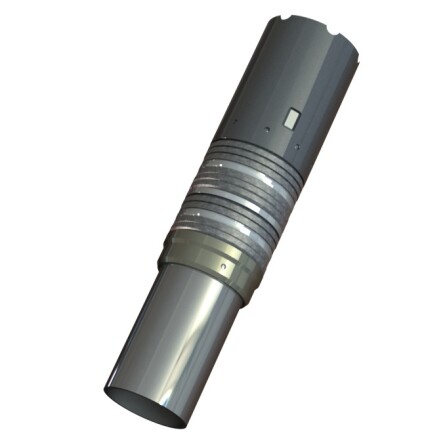

Import Tool's Debris Seal Packer (DSP) is a liner-lap packer specifically designed for running horizontal production and steam injection liners on heavy oil/SAGD/CCS applications. The DSP includes an industry proven, robust stainless steel dual element which prevents produced sand and other debris from impeding steam injection and heavy oil production in a high temperature, abrasive environment. The packer is set hydraulically through a pressure filled piston on the running tool which is installed before running in the well.
• Single trip system
• Hydraulically activated
• No elastomers; complete metal design
• Tapered entry sleeve with tractor grooves for completion re-entry
• Multi-piece packing element
• Available tieback capability using internal machined threads and tieback sub
• Compact length, approximately 3.28 ft (1.0 m)
• Larger metal gauge ring ensures element protection while running in the well
• Internal locking system
• Optional inner-string capabilities through running tool to allow for circulation to the toe
• Element options available to accommodate specific applications
• Setting tool capable of transmitting high torque
• Low setting and release pressures; pressure truck is not required
• Element provides dependable pressure and debris seal
• Ability to push, pull, rotate and circulate in compression or tension, to aid the liner to set depth
