anchored liner-lap packer designed for vertical and horizontal conventional, horizontal production and steam injection liners for heavy oil/SAGD/CSS applications, and liner patching.

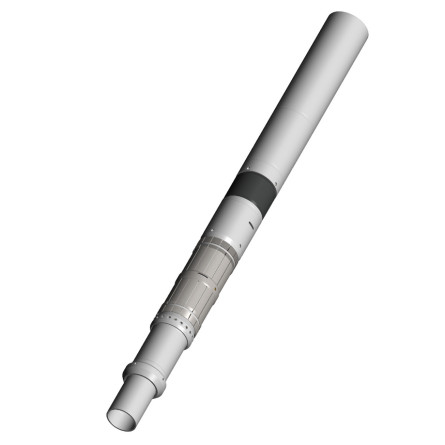

Import Tool's MSR Thermal Liner Hanger Packer is a retrievable, anchored liner-lap packer designed for any well scenario; vertical and horizontal conventional, horizontal production and steam injection liners for heavy oil/SAGD/CSS applications, and liner patching.
The MSR includes an industry proven, robust HT rubber infused-stainless steel dual element which prevents produced sand and other debris from impeding steam injection and heavy oil production in a high temperature, abrasive environment. The MSR element is rated for temperature conditions up to 650°F (343°C) at pressures up to 3,000 psi (20.68 MPa).
The MSR liner top can be equipped with a PBR tieback extension up to 19.69 ft (6.0 m) in length.
• Anchored Liner Top
• Heavy Oil
• SAGD
• Thermal Recovery
• Single trip system
• Hold‐up/hold‐down Bi‐Directional Slips
• Ability to push, pull, rotate and circulate when RIH
• Hydraulically activated
• High torque castellation for drill-in operations
• Larger metal gauge ring ensures element protection while running in
• Internal locking system
• Multi-piece Stainless Steel packing element
• Integrated tieback extension capability
• Optional inner-string capabilities through running tool to all
• Low circulation to the toe
• Element options available to accommodate specific applications
• Rated for 650°F (343°C) at 3,000 psi (20.68 MPa)
